Description
Exhaust Pipe Production Line
Tube Welding Machine
Size range: DN20-DN150
Wall thickness: 0.2-0.6mm
Welding speed:0.8-2.0m/min
Control: Frequency conversion speed control
Welding method: Argon-arc
Welding Welding machine: Panasonic or KEMPPI welding machine
Option 1：Horizontal Hydroforming Bellow Forming machine
Option 2：Vertical Hydroforming Bellow Forming machine

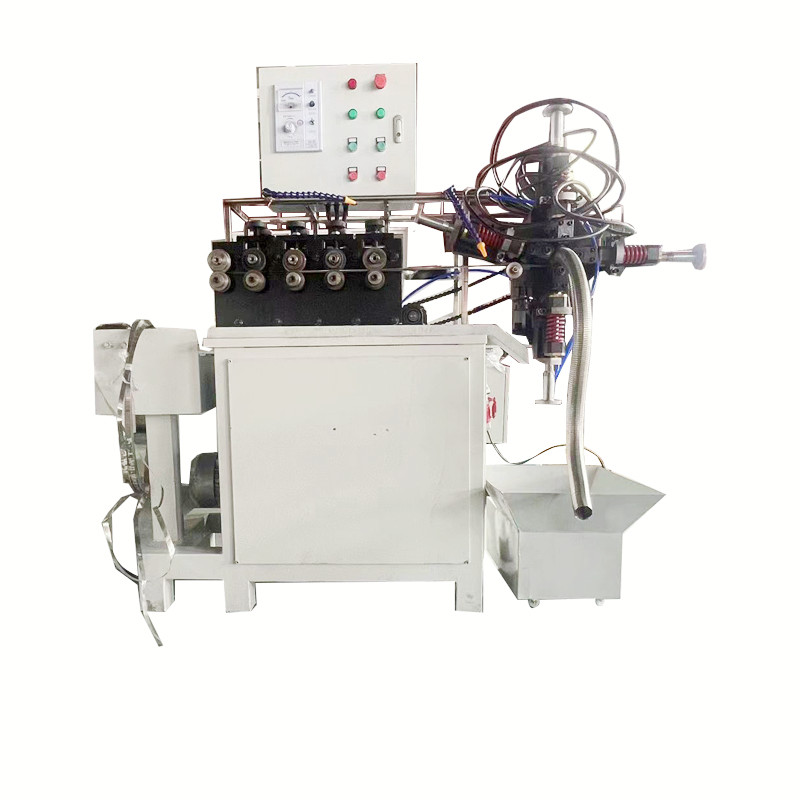

Interlock hose making machine(ID：38-150)
Machine Type No.: CF-150
Available Shape: round or polygonal with different forming dies.
Size range: ID38-150
Forming speed: 150-350m/8hrs
Strip thickness: 0.25-0.5mm
Strip width: 16 and 20mm
Power:4KW
Outer dimensions: 3500mm*1200*1600mm
Weight: 950kgs
48 carrier wire braiding machine
Consisting of:
-Braiding grail 1 unit
-Caterpillar 1 unit
-Bobbin, carrier 48 units
Technical parameter:
Braiding diameter (mm): 30-75
Carrier rotation speed (r/min): 7.25
Braiding angle: 54°44”
Braiding pitch (mm): 66-166
Pulling speed (M/H): 29-72 Carrier NO.: 48
Motor power (KW): Y132M2-6 5.5kw; Y112M-4 4.0kw Dimension (L*W*H): 4150*1830*1900
Machine Weight: 5000 Kgs
-Braiding grail 1 unit
-Caterpillar 1 unit
-Bobbin, carrier 48 units
Technical parameter:
Braiding diameter (mm): 30-75
Carrier rotation speed (r/min): 7.25
Braiding angle: 54°44”
Braiding pitch (mm): 66-166
Pulling speed (M/H): 29-72 Carrier NO.: 48
Motor power (KW): Y132M2-6 5.5kw; Y112M-4 4.0kw Dimension (L*W*H): 4150*1830*1900
Machine Weight: 5000 Kgs

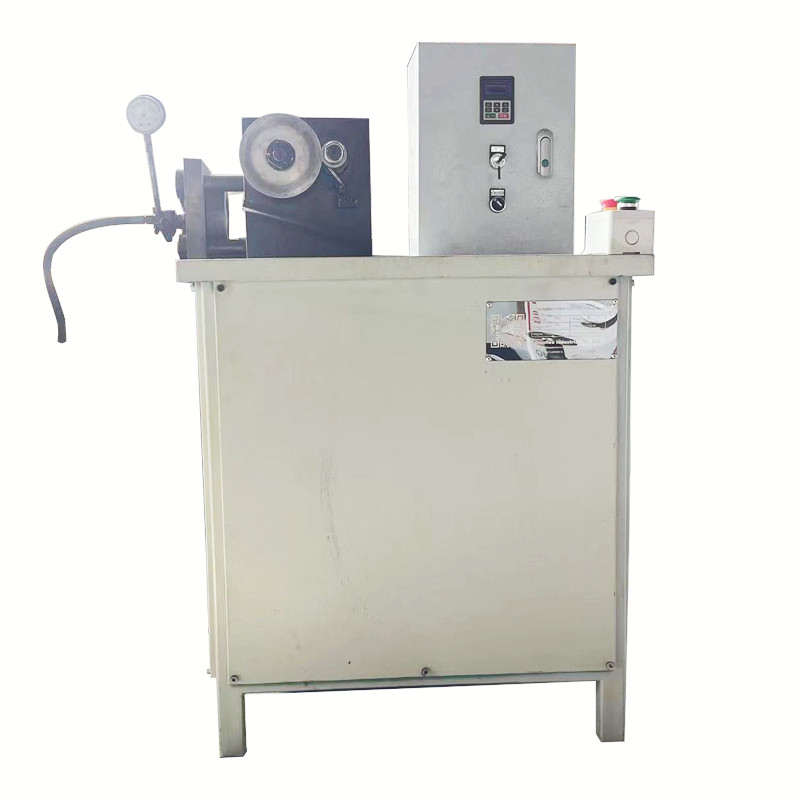

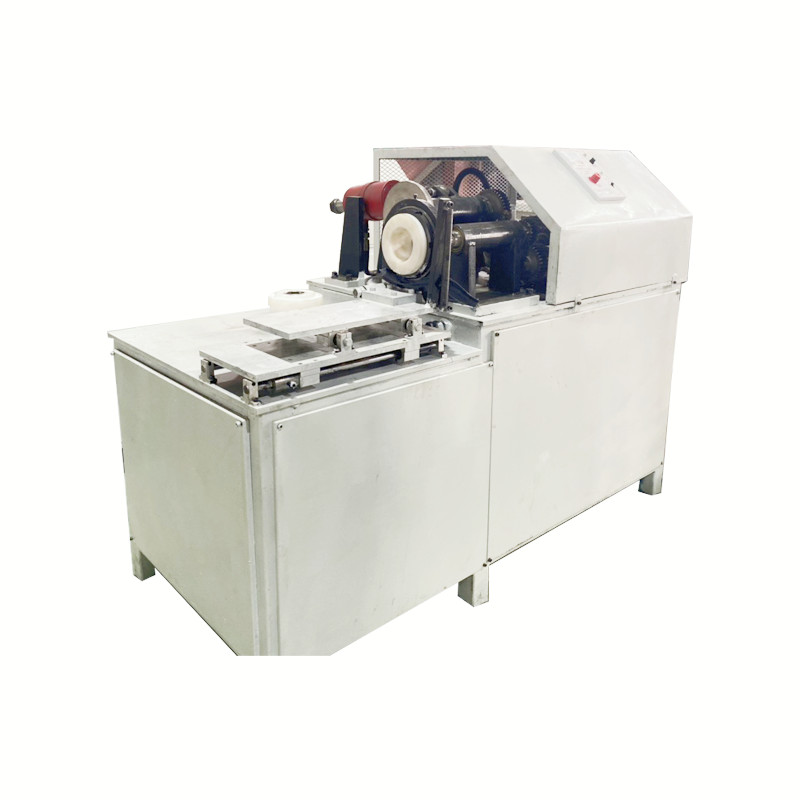

Double end trimming machine
1.Motor Speed regulating motor power：3KW
Oil motor power: 2.2KW
2. Working principle
The speed-adjusting point machine drives the gearbox
Oil motor power: 2.2KW
2. Working principle
The speed-adjusting point machine drives the gearbox
(200 type speed ratio 40:17) to drive two pairs of gears through the chain,and the hob moves forward and under
the action of the cylinder.
3. Dimension L: 1.6m *W: 0.8m *H: 1.2m
3. Dimension L: 1.6m *W: 0.8m *H: 1.2m

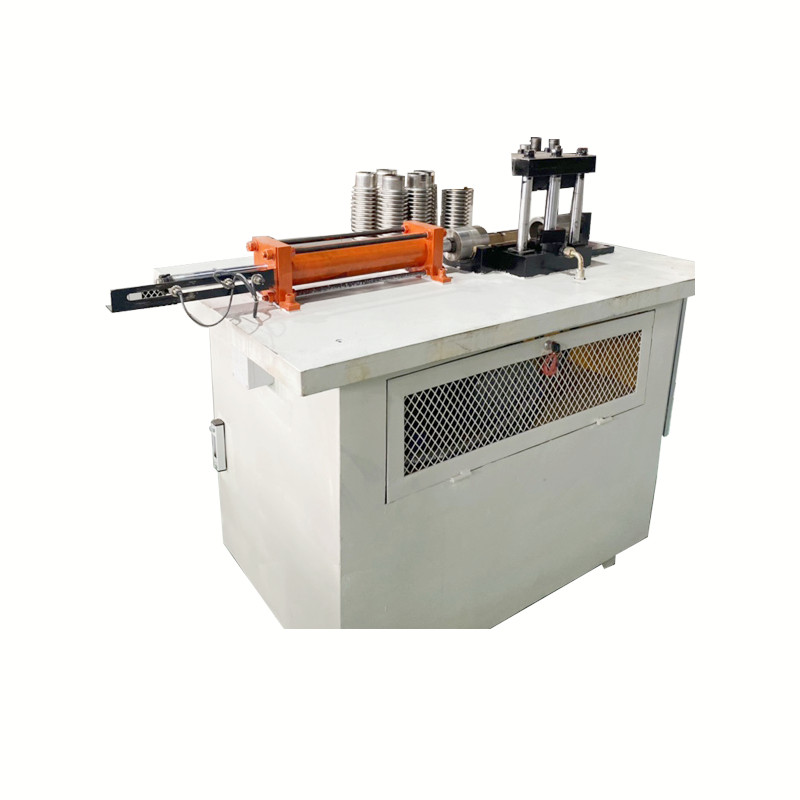

Bellow compressing machine
Size range:ID40-ID80
Including 4 sets of toolings for 4 sizes Power:2.2KW
Speed:1600pcs/8hr
Including 4 sets of toolings for 4 sizes Power:2.2KW
Speed:1600pcs/8hr

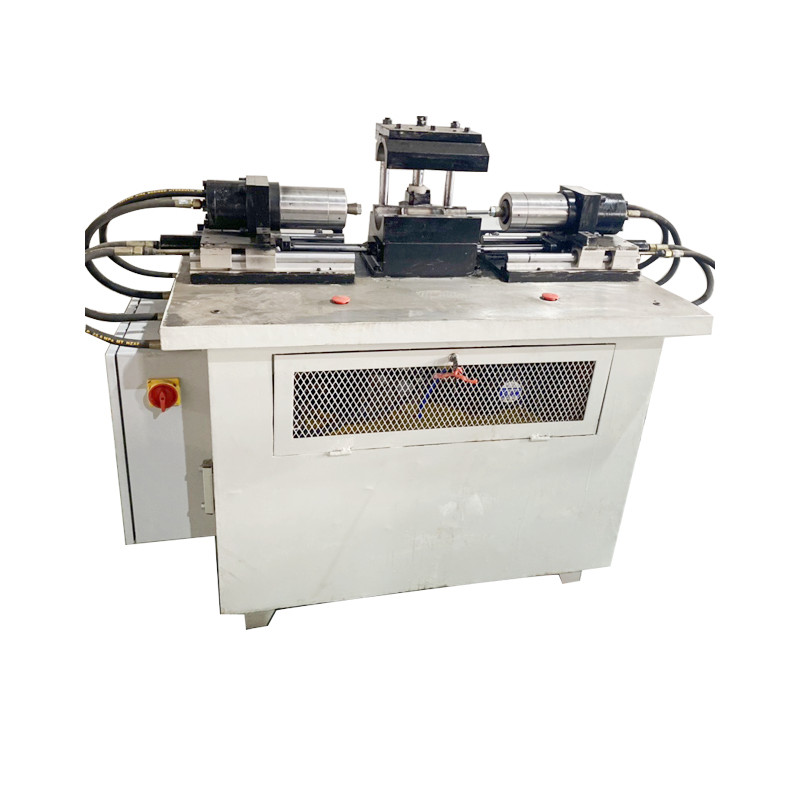

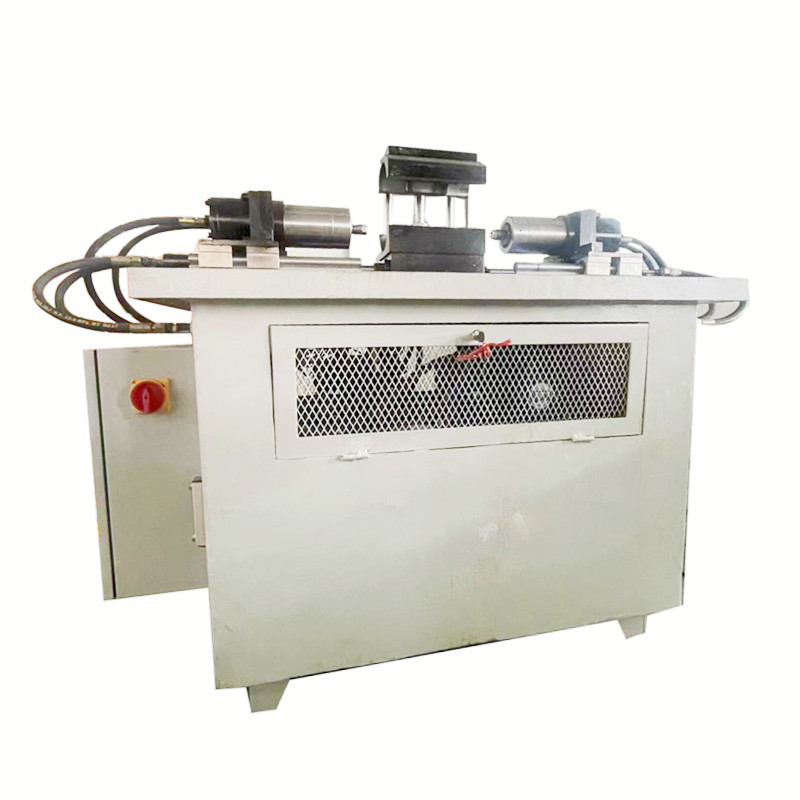

Cap Crimping Machine
Size range: ID40-ID80 Including two sets of toolings Power:2.2KW
Speed:1600pcs/8hr

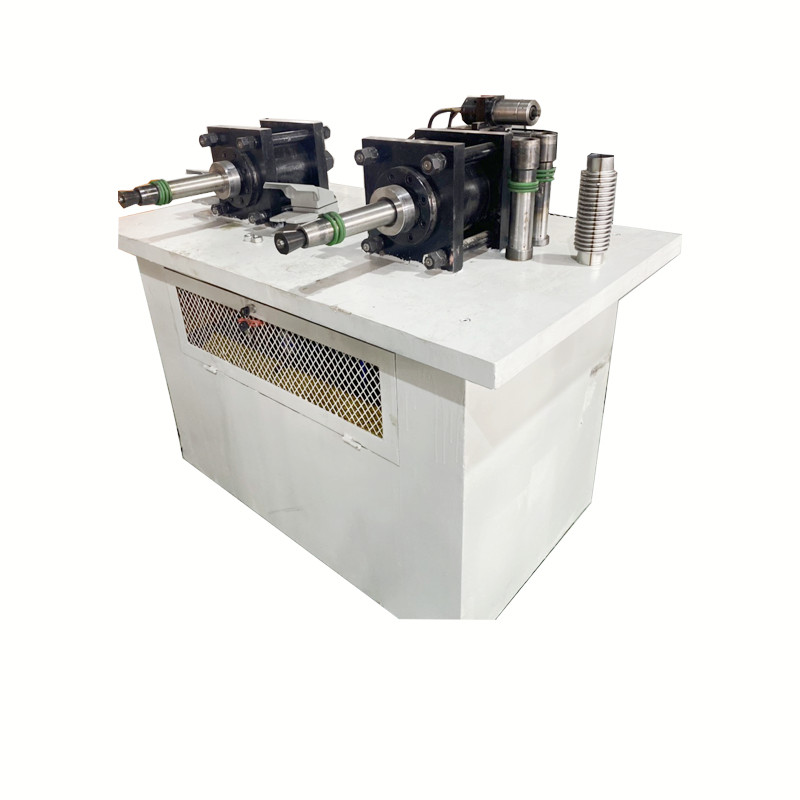

Double end expanding machine
Size range:ID40-ID80
Including two sets of toolings for 4 sizes
Including two sets of toolings for 4 sizes
Power:2.2KW
Speed:2800pcs/8hr
Speed:2800pcs/8hr
FAQ
1.What is exhaust pipe size, wall thickness,convolution height, pitch,number of convolutions?
2.It would be helpful if you directly send us the technical drawing of exhaust pipe.
2.It would be helpful if you directly send us the technical drawing of exhaust pipe.
