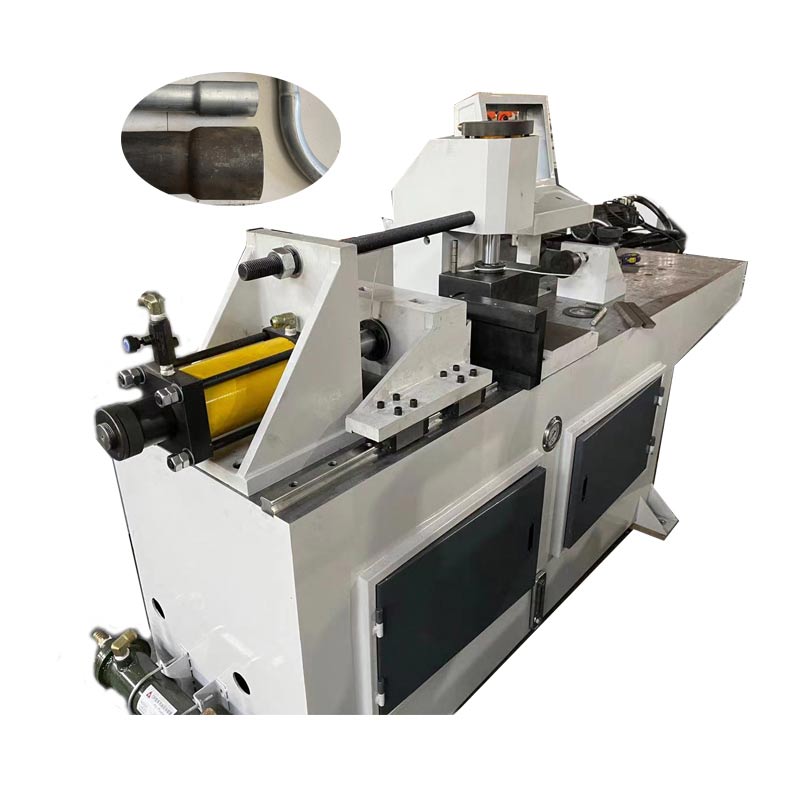

Description
Features
1. The machine is controlled by a microcomputer, hydraulically driven, Chinese subtitles displayed, and man-machine dialogue operation
2. Manual and semi-automatic operation modes can be selected arbitrarily, a one-point foot switch has two functions of start and emergency stop
3. Single station configuration, using linear guide rail as the carrier, product repeatability is good, the whole machine has the characteristics of convenient operation, stable performance, high work efficiency, and high safety factor. It is ideal equipment for the pipe processing industry
4. Processing shape: convex, concave, joint, long deviation, square, open elbow, flat elbow, etc., depending on the processed object to change the mold shape
5. It can meet the pipe expansion processing of φ50φ75φ100φ130, and reach a single-side single 3mm expansion size. The specific expansion diameter and expansion length are subject to the actual product tube intubation requirements. The expansion time is about 30 seconds per piece, the size of the pipe fittings is different, and the expansion time varies, subject to actual conditions.
Technical Parameters
| The main parameters | 130NC | Remark |
| Maximum applicable pipe diameter × wall thickness | Φ130mm×3 | 1. The maximum working stroke can be customized according to customer requirements |
| Maximum working stroke | 150mm | |
| Hydraulic output | 14Mpa | |
| Speed of work | 140mm in 3-4/s | |
| Total power | 11KW | |
| Machine size | 3200mm x 1300mm x 1900mm | |
| Machine weight | 3000kg |

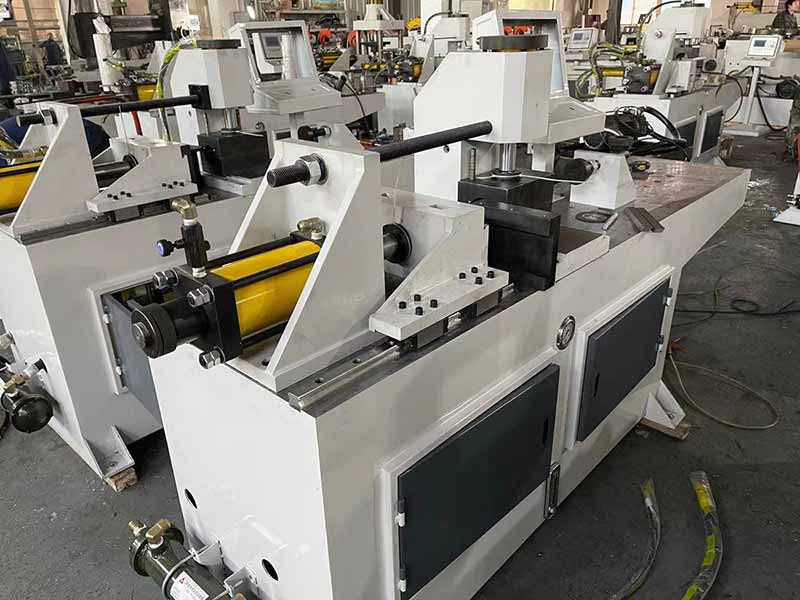

Machine Details
Application
