Description

Bellow ends trimming machine

---

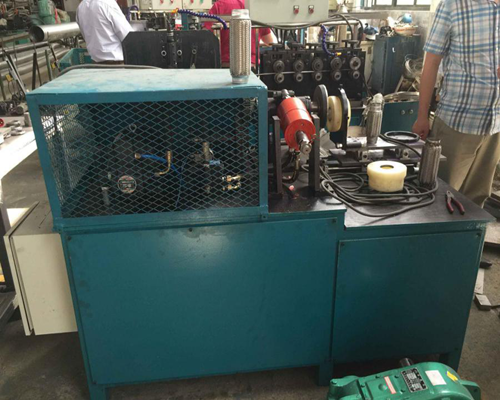

1. SINGLE HEAD BELLOW ENDS TRIMMING MACHINE

Application: for auto bellow

Size range: DN38-100mm

Trimming speed: 960pcs/8hrs

Power: 3KW

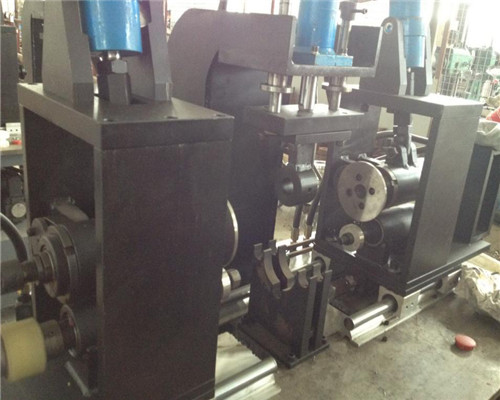

2. DOUBLE HEADS BELLOW ENDS TRIMMING MACHINE

Application: for auto bellow

Size range: DN38-100mm

Trimming speed: 2000pc/8hrs

Power: 4KW

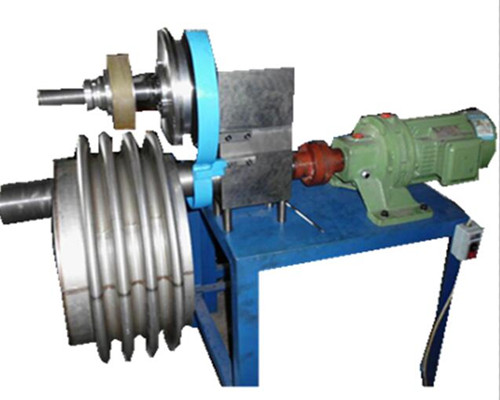

3.Big Bellow Ends Cutting/Trimming Machine

Power: 1.5KW

Size range: DN200-600

Thickness as per following table:

DN	Actual ID	Wall thickness	Height of convolution	Pitch distance	Width of strip
DN200	Ф199.84	0.8	25	22	630
DN250	Ф249.84	0.8	30	25	787
DN300	Ф299.84	0.8	35	30	944
DN350	Ф349	1.0	38	33	1099
DN400	Ф399	1.0	40	36	1256
DN450	Ф449	1.2	45	40	1414
DN500	Ф499	1.2	50	45	1571
DN550	Ф549	1.2×2	50	55	1728/1738.5
DN600	Ф599	1.2×2	60	60	1885/1896
