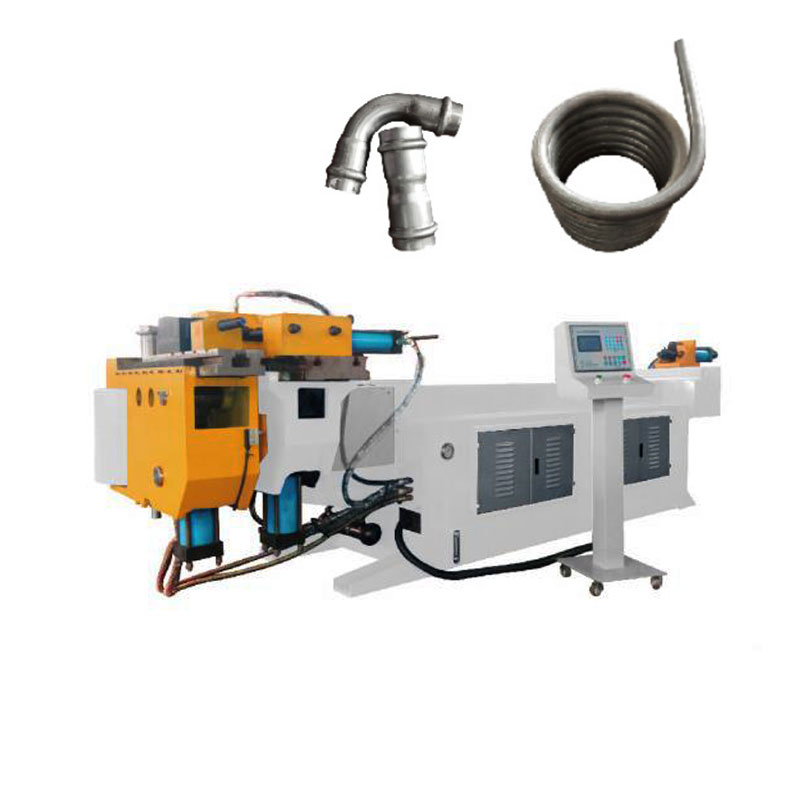

Description
Technical Parameters
| Max. Bending Capacity | mm | ¢63*6 |
| Bending Radius Range | mm | 30-300 |
| Max. Bending Angle | ° | 190° |
| Bending Speed | °/sec | 30 |
| Turning Speed | °/sec | 160 |
| Feeding Speed | mm/sec | 800 |
| Bending Precision | ° | ±0.10 |
| Turning Precision | ° | ±0.10 |
| Feeding Precision | mm | ±0.10 |
| Turning Servomotor Power | kW | 1 |
| Feeding Servomotor Power | kW | 1.5 |
| Though Effective Distance | mm | 2600 |
| System Motor Power | kW | 7.5 |
| Max. Pressure | Mpa | 16 |
| Oil Pump Delivery Volume | L | 25 |
| L*W*H (Packaging Dimension) | mm | 5000*1200*1350 |
| Weight | T | 3.5 |
Features
1. Bening pipe with servo motor drive, high precise bending angle, and compensation value.
2. Corner and feeding are driven by servo motor, high efficiency, accurate bending angle, and feeding.
3. It is very suitable for many spatial angles and high-requirement of precision, E.G. processing for oil tube of car, air-conditional tube, frame of bicycle and motorcycle, etc.
Comflex specializes in flexible metal hose making machines, pipe forming machinery with many years of experience and develop our machine technology all the time. So far, we have exported our machines to many countries, such as the US, Canada, Turkey, Australia, the UK, Russia, Ukraine, India, etc.
With the progressive machine technology and the mature service system, we keep a pretty decent relationship with all our clients,
some of them have cooperated with us for over 10 years and consecutively buy the machines from us to expand their productivity.
FAQ
1. What kind of pipe materials can bend?
Carbon steel, stainless steel, Aluminum, Copper pipes, tubes, profile
Boil bank tubes bending
Condenser tubes bending
Wheelbarrow pipe bending
Exhaust pipe bending
Automobile pipe bending
Solid bar bending
Garage door profile bending
2. How to choose a pipe/tube bending machine?
According to the following information to choose pipe/tube bending machine type:
1). Bending Pipe / Tube materials
2). Max. the outside diameter of your bending pipe/tube
3). Wall thickness range of pipe/tube
4). Max. bending radius (CLR), if possible (general 1.5*OD)
5). Bending drawings or photos, samples if possible
3. Do you provide training for the operation of the Mandrel Pipe Bender?
1). Will provide an operating video and manual book with our pipe bending machine.
2). Welcome your operators to our factory, we’ll arrange everything at our factory.
4. What about your Mandrel pipe bending machine main component?
1). PLC: Japan Mitsubishi
2). Servo motor: Japan Mitsubishi
3). Hydraulic system: Japan Yuken
4). Main Motor: Siemens
5). Electric parts: Schneider
5. Any optional functions for the Mandrel pipe bending machine?
1). Servo motor for axis: 2axis(standard for CNC type),3axis,4axis,5axis,6axis..
2). Control System: PLC(standard) or IPC
3). Bending mold layer: single layer(standard), double layers, triple layers, and more.
4). Push bending function: V
5). Hole-Punching function: E
6. What about your machine warranty?
One year warranty after machine reached customer’s workshop.
And use famous brand components for a long working lifespan.
7. What certificate is for the Mandrel pipe bending machine?
We have an ISO certificate for our factory and CE Certification for our machine.
8. What delivery time Mandrel for pipe bend machine?
Within 30 working days after receiving advanced payment.
