Description
Exhaust pipe interlock hose making machine
ABOUT INTERLOCK HOSE
The Interlock machine is used to produce flexible hose from metal strip by spiral lock forming, the metal strip can be stainless steel, galvanized steel and aluminum, etc. And the finished flexible hose will be widely used for automobile exhaust pipe.
Feature
l Interlock seam for more rigidity and less flexibility.
l The flexibility is adjustable by change lock seaming
l Automatic lubrication and cooling system
l Adjustable lock forming roller for different thickness
MAIN PARAMETER OF THE MACHINE:
Available Shape: round or polygonal with different forming dies
Size range: ID38-150, ID150-300
Forming speed: 100-200m/8hrs, 150-350m/8hrs
Strip thickness: 0.25-0.8mm, 0.25-0.8mm
Strip width: 16,20, 28, 32mm
Power: 4KW, 11KW
Outer dimensions: 3500mmX1200X1600mm
Weight: 950kg,1200kgs

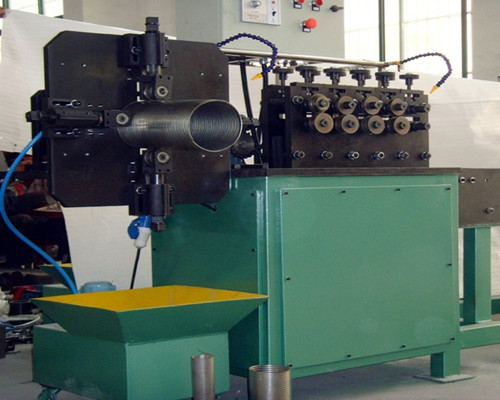

PICTURES OF THE MACHINE

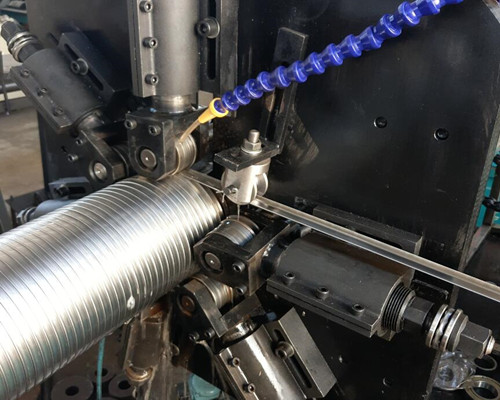

MACHINE DETAILS

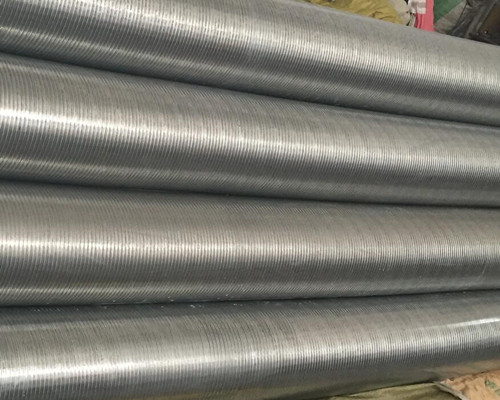

INTERLOCK HOSE PRODUCTS
MORE MODELS OF MACHINES
| Technical data for interlock hose making machine | ||||||
| Size range | ID6-ID26mm | ID30-50mm | ID38-150mm | ID75-300mm | ID200-400mm | ID38-65mm |
| Production speed | 50-180m/hr | 50-180m/hr | 100-120m/8hr | 150-400m/8hr | 100-120m/8hr | 150-400/8hr |
| Strip size | 7-9*0.18-0.23mm | 7-9*0.18-0.23mm | 16,20mm*0.25-0.5mm | 20*0.45mm | 28*0.5-0.8mm | 15*0.25mm |
| Production type | round | round | Round/polygonal | Round | round | polygonal |
