Description

Product Description

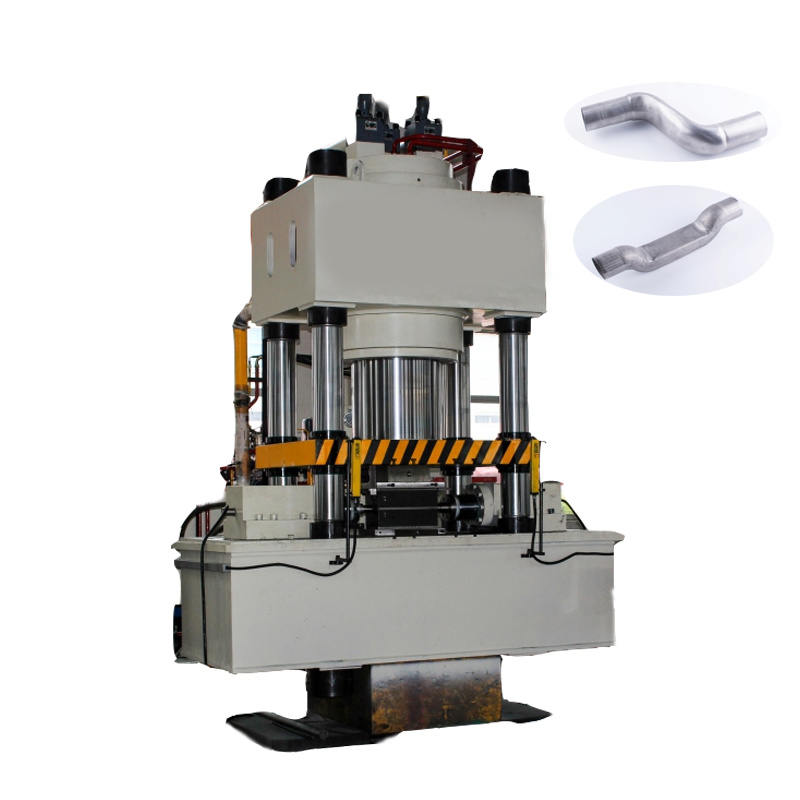

This machine is suitable for bellow, all exhaust parts forming process.
This machine has an independent motive mechanism and electrical system, which can realize adjustment and semi-automatic operation.
The working pressure and the stroke range of the pressing speed of the machine can be adjusted according to the needs of the process. The mold reset adopts pneumatic control to reset alone.

Technical Parameters

Item	Name			Unit	Value
1	Clamping cylinder nominal pressure			KN	1600
2	Clamping cylinder liquid maximum working pressure			MPa	25
3	Maximum travel of the movable beam			mm	500
4	The maximum distance from the movable beam to the work surface			mm	950
5	The minimum distance from the movable beam to the work surface			mm	450
6	Active beam speed	No-load downlink		Mm/s	220
		forward			30
		return			190
7	Side cylinder nominal force			KN	2×700
8	Side cylinder liquid maximum working pressure			MPa	25
9	Maximum stroke of side cylinder			mm	180
10	Side Cylinder Rod End Spacing			mm	780
10	Side cylinder extrusion speed (according to two cylinders)			mm/s	30
11	The nominal force of the lower ejector cylinder			KN	200
12	The maximum stroke of the lower ejector cylinder			mm	100
13	Motor Power			kw	22
14	Workbench area		Left and right (inside the column)	mm	1310
			before and after		750
15	Distance from side cylinder center to the table surface			mm	140

Application

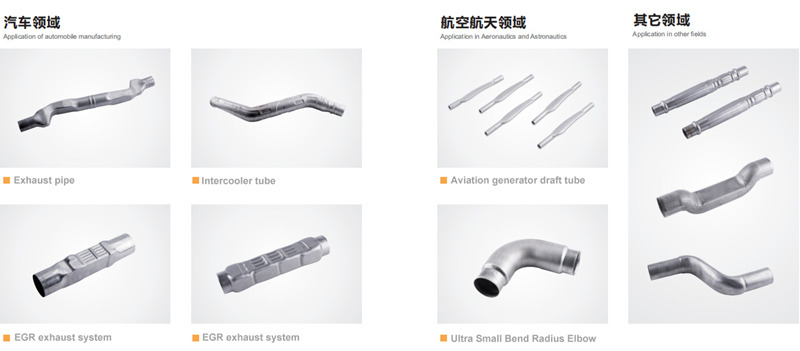

Applicable to industries of aerospace, electric power, petrochemical, automobile, heat supply system, steel forging, bridge construction, urban construction, instrument, metallurgy, and shipbuilding.

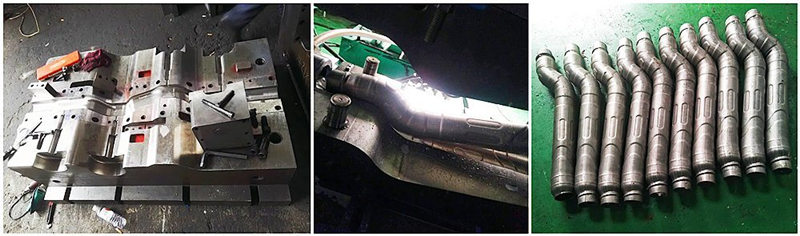

Especially suitable for stainless steel bellows

Specialize in forming sharp angles and small gaps between peaks of metal bellows.

For instance, assembling metal bellows on a pipeline system can effectively compensate thermal expansion, and reduce expansion and vibration. Metal corrugated pipe.
