Description
Flexible Metal Gas Hose/Water Hose Production Line
Different types of gas hose
Flat PVC Cover Wire braiding Vacuum PVC Cover
1.Mechanical hose making machine
The machine can be used for different applications as follows:
A: Annular metal hose making machine with mould
B: helical metal hose making machine with mould
C: tube welding machine for the size up to DN50 without hose forming machine
The machine can be used for gas hose, water hose, solar hose, heat exchanger and fire fighting/sprinkler hose manufacturing.
Size range: DN8 up to DN40
Wall thickness: 0.18-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
Material: sus304, 321 and 316L

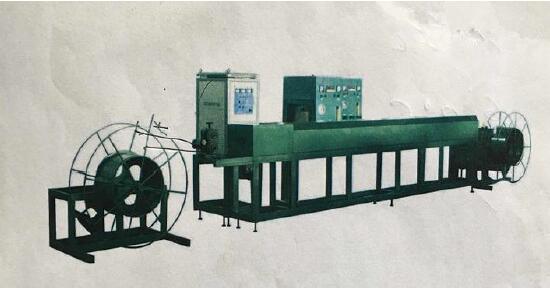

2.Annealing & brightening line machine
Rated power:60KW
Rated temperature:1100C
Rated voltage:380V
No. of phases: 3
Temperature control zone: 3
Furnace size:51*6*5000mm (OD*thickness*length)
No.of hoses can be annealed at same time:3pcs
Material of furnace:310S
Length of furnace: 4600mm
Sleeve length:51*3*6500mm
Material:sus304
3.Convolution compressing machine
To get more flexible hose, the metal hose will be compressed on this month, the pitch distance will be closed which make hoses more flexible.
Application: vacuum hose/bellow, high flexible bellows
Size range: HJ-BA100 DN25-100mm
HJ-BA200 DN100-200mm
4.Vertical Fitting Welding Machine
Size range: DN8-32
Welding type: TIG welding
Welding position: circumferential seam welding
Compact structure
Torch Automatic rotating
5.Horizontal Fitting Welding Machine
Size range: DN8-32
Welding type: TIG welding
Compact structure
Part Automatic rotating
6.Testing Bench
The machine is widely used for following hose testing:
water hose, gas hose, solar hose and fire fighting hose hydraulic leakage testing
Size range:DN8-32mm
Pressure:6bar
Max. length of the hose: up to 2000mm
No. of hoses testing at the same time: 4-8pcs
Testing medium: water
7.Pitch closing machine
To get more flexible hose, the metal hose will be compressed on this machine, the pitch distance will be closed which make hoses more flexible.
Flat PVC Cover Production Process
PVC extruder line
Hard Teeth Surface, type 173 Gearbox 18.5KW Inverter, 4 grade Motor with Chinese famous brand Chint contactor
The screw & barrel are 38CrMoAl, Nitriding treatment, depth: 0.2-0.4MM, compression ratio:3.2, Length : diameter:25:1 with water cooling system
Thermal heating & electrical: the whole machine apply Chint DC contactor. Intelligent temperature controller, AL heating: 6 zones, 4pcs with two sections of moulds
Size range: DN8-32mm

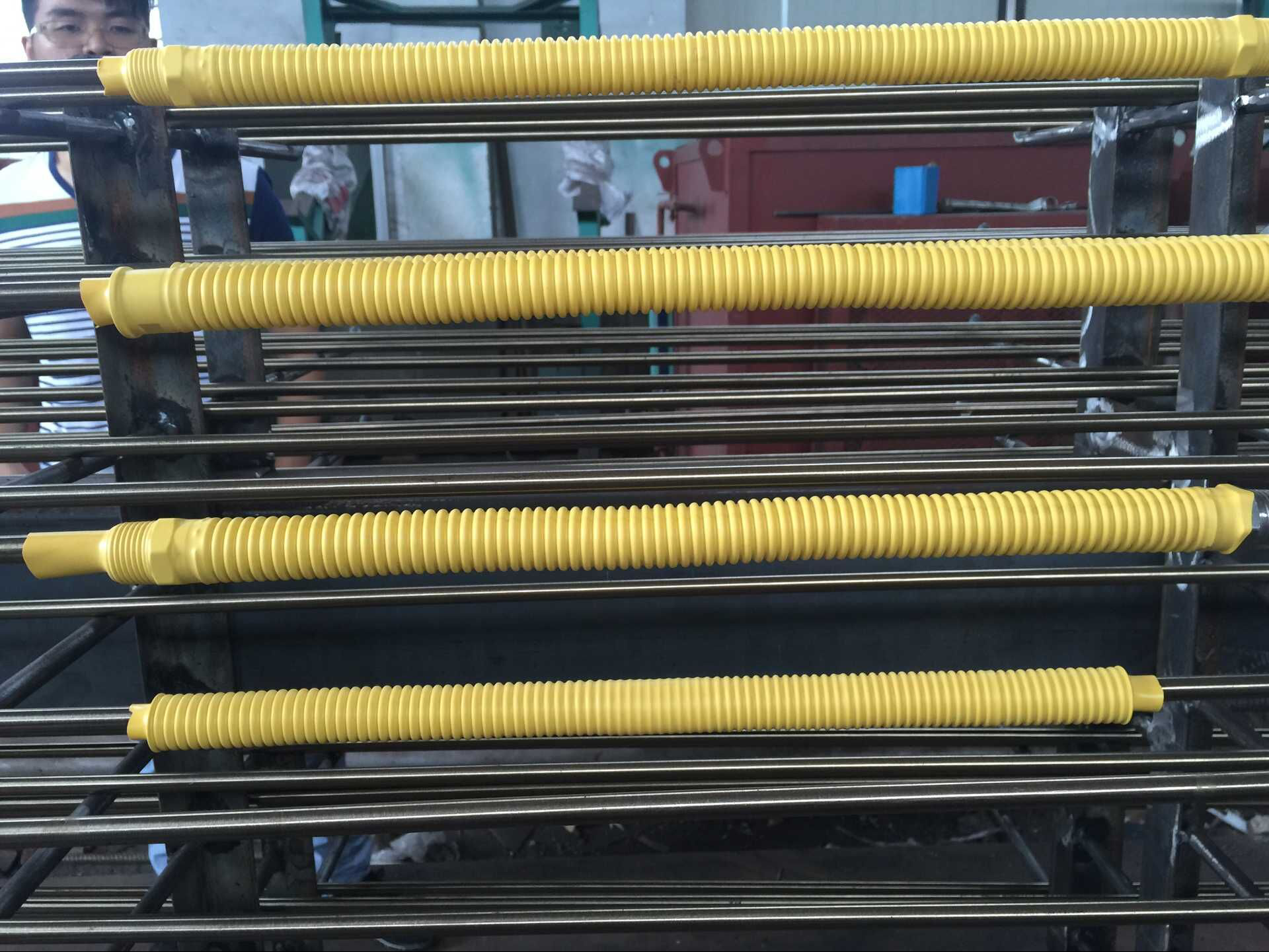

Vacuum PVC coating line
Rated Power: 60KW
Rated voltage: 380V
Rated temperature: 300 ºC
Frequency: 50HZ Cylinder: ¢ 600X4 meters
Cylinder moves: Manual
Cylinder seal forms: with silicone rubber seal
Vacuum pump: The 2X-30 rotary vane vacuum pump
Max. length: 3m
Heating element: 30 Pcs of stainless steel electric heating pipe
Wire Braiding Production Process
Wire braiding machine 18 bobbin winder
Accessories
Company information
We are professional manufacturer of all types of metal flexible metal hose and machinery, such as corrugated metal hose, square lock and interlock hose/ conduit with more than 25 years of experience. The hoses are widely used in many industries: gas hose, water hose and wire & cable protection circuit, etc..
FAQ
Q: Why so many suppliers choose us?
A:Because we are one of most professional manufacturer of the metal hose and hose forming machine with more than 25 years of experience
Q:What sizes of can you make?
A: all sizes from DN15 up to DN32mm
Q: What kind of gas hose can you supply?
A: Flat PVC Cover, Wire braiding,Vacuum PVC Cover
We need to know following information to give you our best quotation for the gas hose making machine:
A: What kind of gas hose you want to make?
B: Size range of the gas hose.
