Mechanical Mandrel Bellow Expanding Machine

MAIN PARAMETER

Size range: DN400-DN700, DN800-5000mm

Wall thickness: single layer≤3.0mm;

Total thickness of multilayer: ≤6.0mm;

Each set of dies will be comprised of 12 pieces,

Max. height of convolution: ≤90mm;

Category:

Description

Mechanical Mandrel Bellow Expanding Machine

MAIN PARAMETER

Size range: DN400-DN700, DN800-5000mm

Wall thickness: single layer≤3.0mm;

Total thickness of multilayer: ≤6.0mm;

Each set of dies will be comprised of 12 pieces,

Max. height of convolution: ≤90mm;

Input parameters: Bellow inner diameter Di, height of convolution H, pitch distance W, No.of convolutions, wall thickness T; straight side length L1(including R), process side L2; die thickness; single convolution opening length correction value(according to +/-1mm)

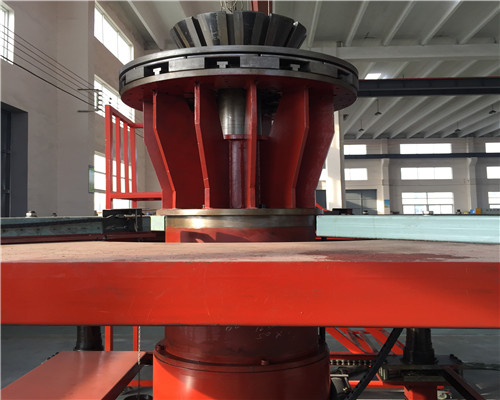

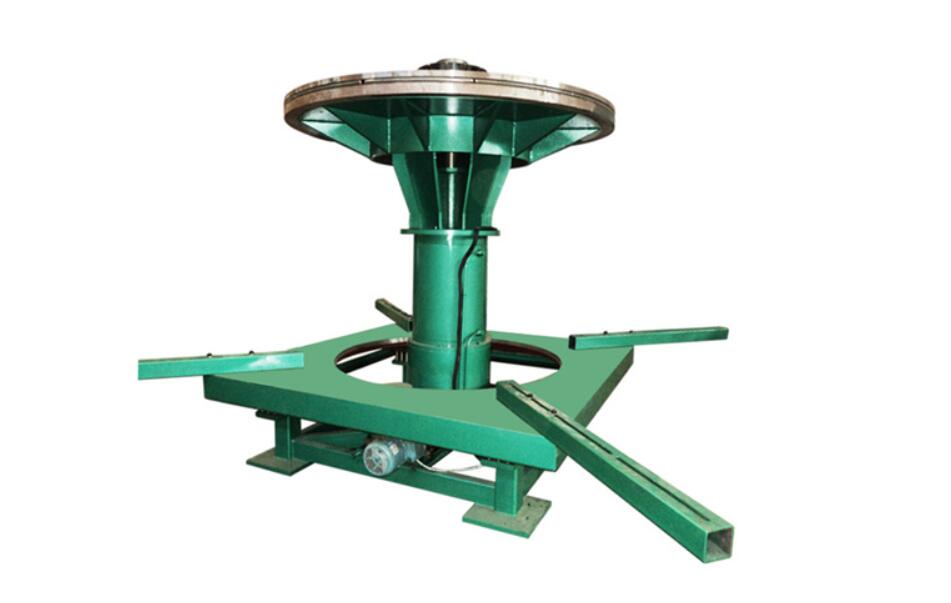

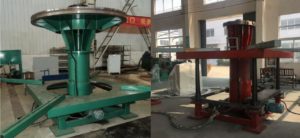

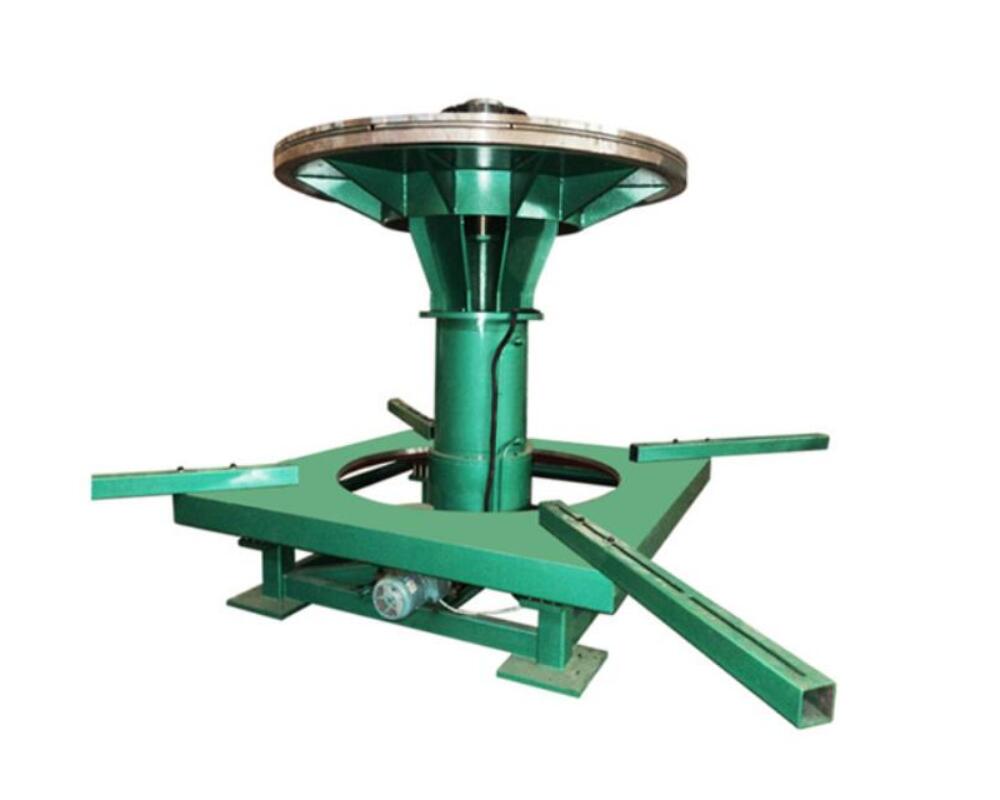

PICTURES OF THE MACHINE

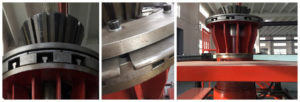

MACHINE DETAILS

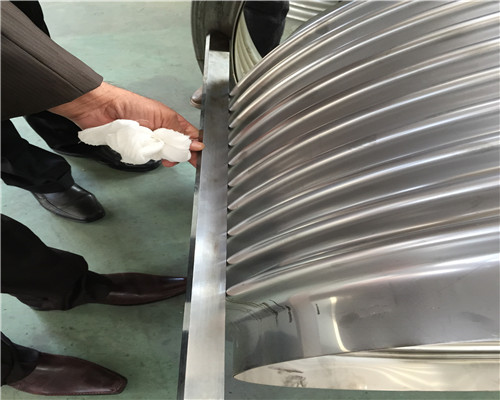

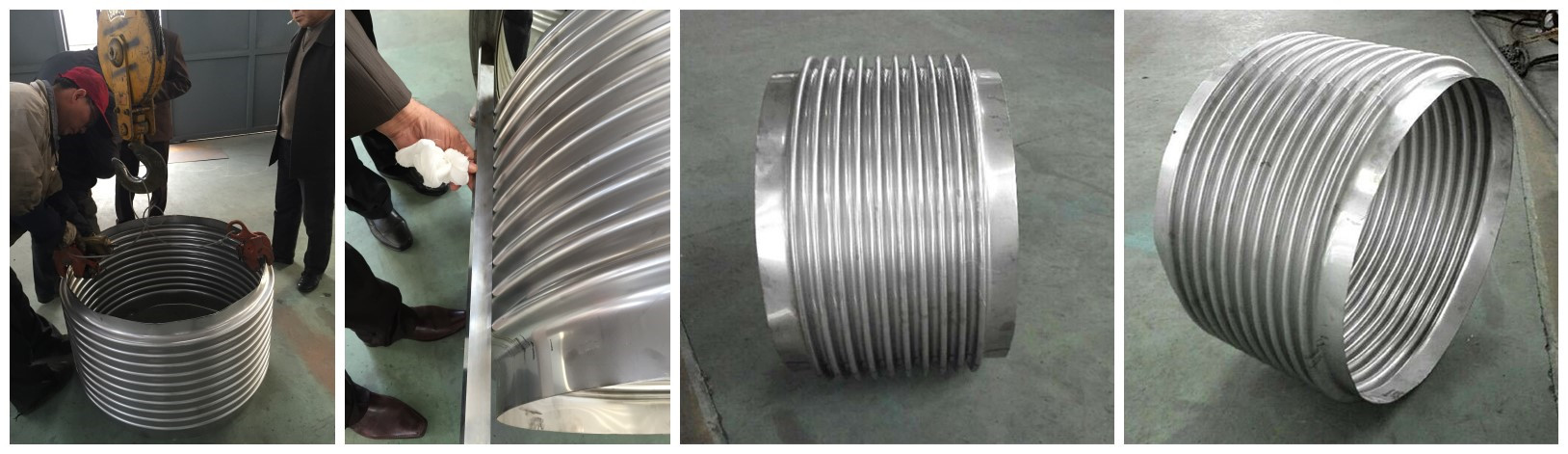

PRODUCTS FROM THE MACHINE
