Description

Metal hose elastomer forming machine

---

The metal hose elastomer forming machine is used to produce “Ω” shape metal hose, which has good flexibility.

MAIN PARAMETER

• Main size range of the machine: DN12-50(65), DN65-150
• Formed shape: Ω shape
• Material:  sus304, 321 and 316L
• Length limit for less than DN32: 4m;
• Length limit for bigger than DN40: 6m
• Advantage of Ω shape: Good flexibility



MAIN MODEL OF THE MACHINE

1. XKCX―32

ID range: Φ12―Φ32mm

Thickness range: δ=0.2―0.3mm

Length range: L≤6000mm



2. XKCX―65

ID range: Φ15―Φ65mm

Thickness range: δ=0.2―0.4mm

Length range: DN15、20mm, L≤4000mm Up DN25mm L≤7000mm



3. XKCX―100

ID range: Φ15―Φ100mm

Thickness range: δ=0.2―0.5mm

Length range: DN15、20mm, L≤4000mm Up DN25mm, L≤7500mm



4. XKCX―150

ID range: DN50―DN150mm;

Thickness range: δ=0.4―0.6mm

Length range L≤6000mm;

Pictures of the machines

PICTURES OF THE MACHINE

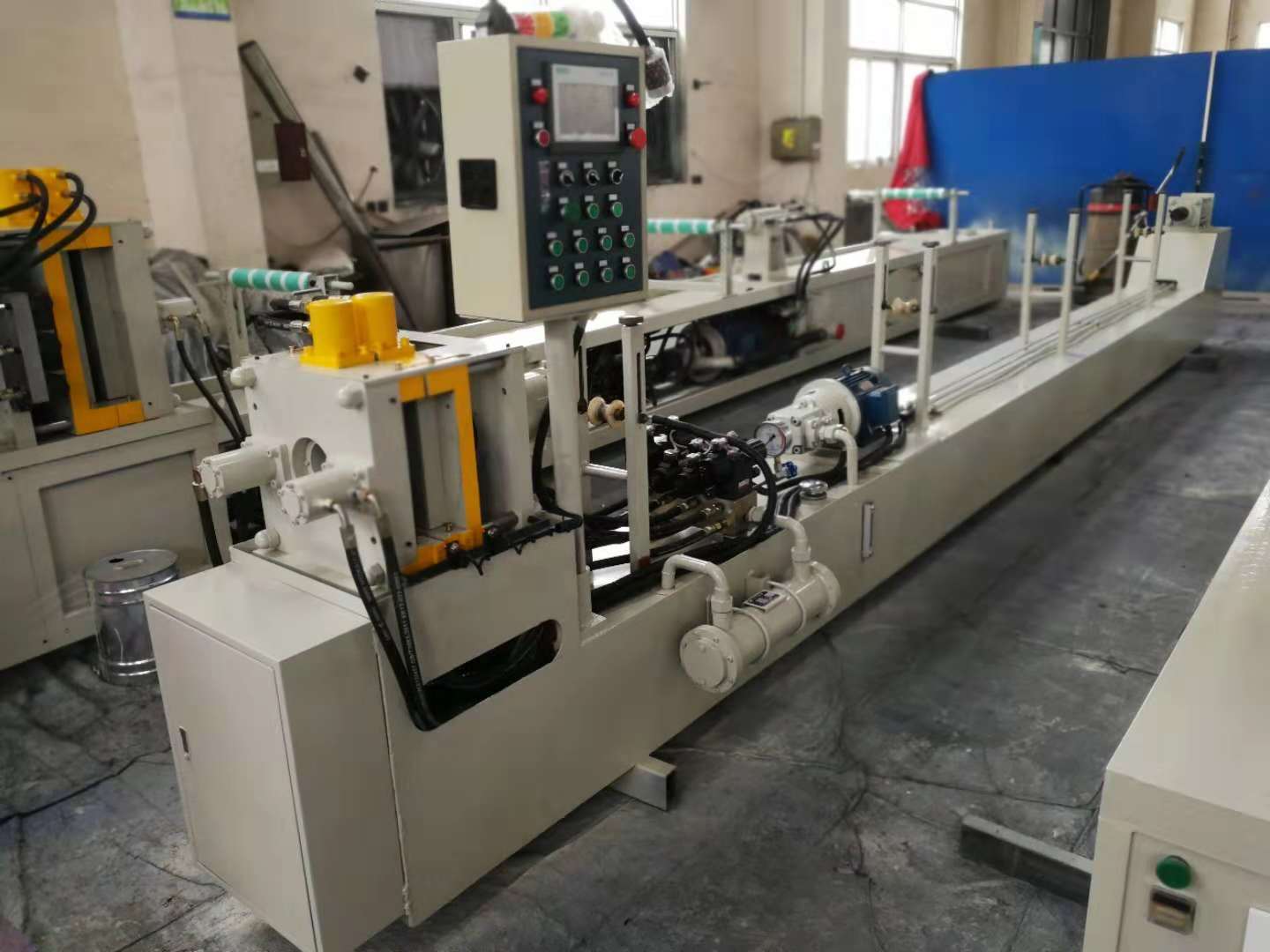

DN12-DN65 ELASTOMER FORMING MACHINE

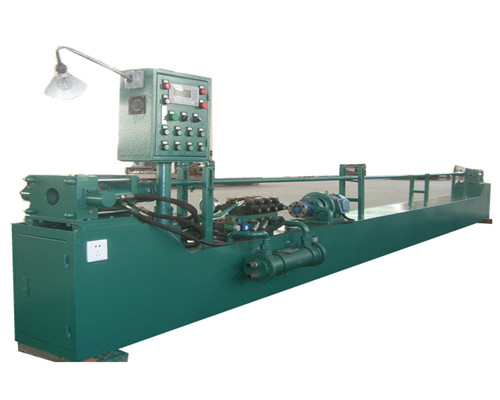

DN50-DN150 ELASTOMER FORMING MACHINE
