Rectangular corner bellow bending machine

---

MAIN PARAMETER

Bellow shape: rectangular shape / square shape

Forming way: bending

Forming medium: mould

Mould shape: adjustable according to requirement

Normal no. of convolutions: 1, 2, 3, 4…

Inner diameter: 300, 600…

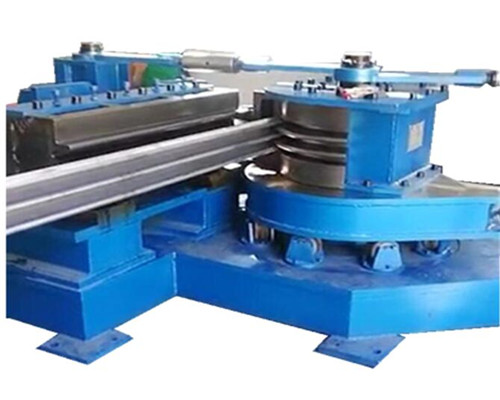

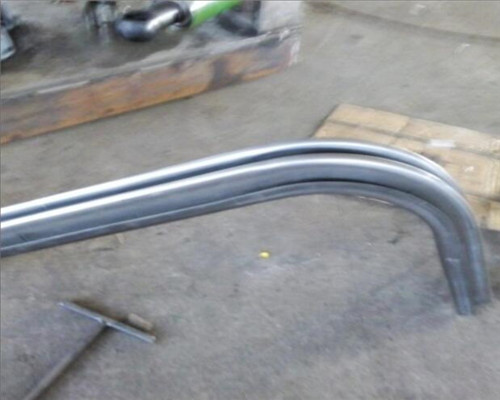

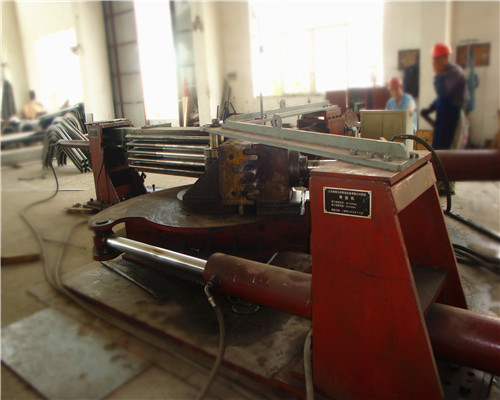

PICTURES OF THE MACHINE

STRUCTURE OF THE MACHINE

DETAILED PARAMETER SHEET

Standard	Name	Type	No. of convolution (mm)	Height of convolution (mm)	Pitch (mm)	Thickness (mm)	Inner radius (mm)	Outer radius (mm)
	Bending	UV	2	198	110	2.0	600	798
	Bending	UV	1	198	110	2.0	600	798
American CE	Bending	V	2	216	86	2.5	600	816
	Bending	V	1	216	86	2.5	600	816
	Bending	UV	4	108	59	1.5	300	408
	Bending	UV	3	108	59	1.5	300	408
	Bending	UV	2	108	59	1.5	300	408
	Bending	UV	1	108	59	1.5	300	408
Japan AT80 standard	Bending	U	4	105	80	1.5	300	405
	Bending	U	3	105	80	1.5	300	405
	Bending	U	2	105	80	1.5	300	405
	Bending	U	1	105	80	1.5	300	405
