Automobile exhaust pipe production line

MAIN PROCESS OF THE EXHAUST PIPE PRODUCTION LINE

  • A: Bellow forming machines
  • B: Bellow compressing machine
  • C: Bellow end trimming machine
  • D. Cap crimping machine
  • E. Interlock hose making machines
  • F. Wire braiding machines etc..





Category:

Description

Exhaust pipe production line

3 normal kinds of automobile exhaust pipe

Single Pitch Automatic Bellow Forming Machine

MAIN PROCESS OF THE EXHAUST PIPE PRODUCTION LINE

  • A: Bellow forming machines
  • B: Bellow compressing machine
  • C: Bellow end trimming machine
  • D. Cap crimping machine
  • E. Interlock hose making machines
  • F. Wire braiding machines etc..

1. BELLOW FORMING MACHINE

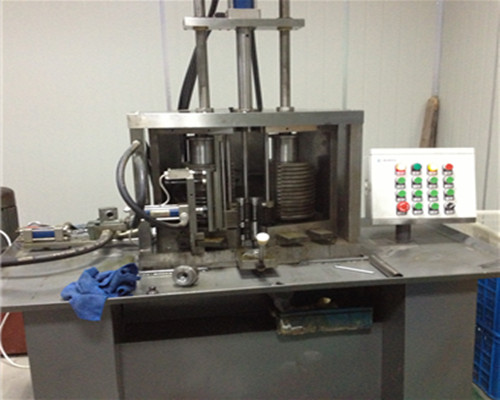

A. Automatic vertical bellow forming machine(One stroke one piece)

* Sizerange: 32-100mm

* Thickness range: 0.3mm-1mm

* Working principle: Hydraulic

Single Pitch Automatic Bellow Forming Machine

B. YKCX-65D automatic bellow forming machine

* Inner diameter of the bellow: 16-60mm

* Thickness of the bellow: customized acceptable

* Toolings/different size changing time is about 15 minutes

* Capacity: 10 seconds for one convolution

* Length of tube before forming: L≤1000mm.

* Use feeding cylinderSingle Pitch Automatic Bellow Forming Machine

2. AUTOMATIC EXHAUST BELLOW ASSEMBLY MACHINE

A. Bellow compressing machine           B. Cap crimping machine

Single Pitch Automatic Bellow Forming Machine

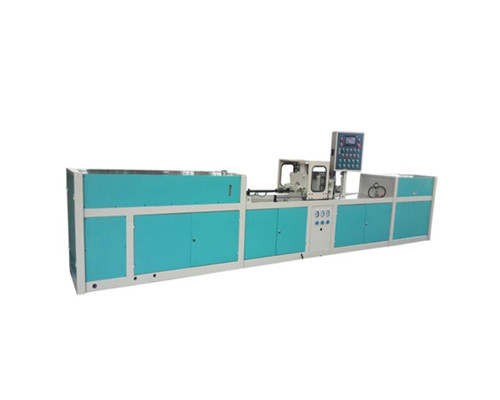

C. Bellow end trimming machine(single head or double head)

Single Pitch Automatic Bellow Forming Machine

D. Interlock hose making machine       E. Wire braiding machine

Single Pitch Automatic Bellow Forming Machine

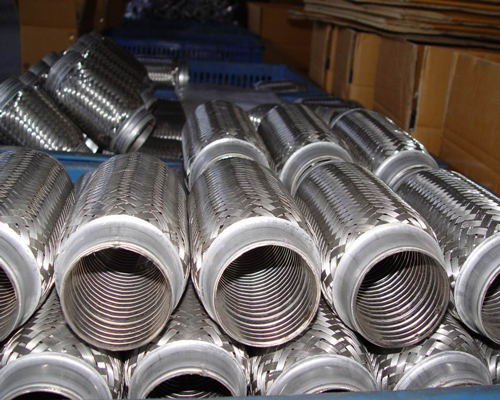

END PRODUCTS
