Description

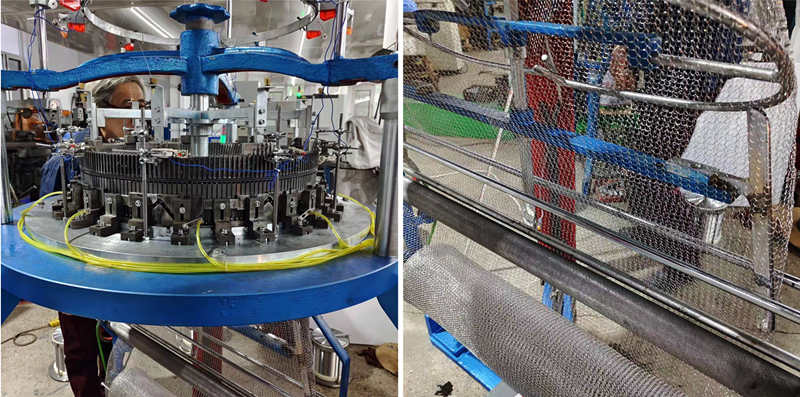

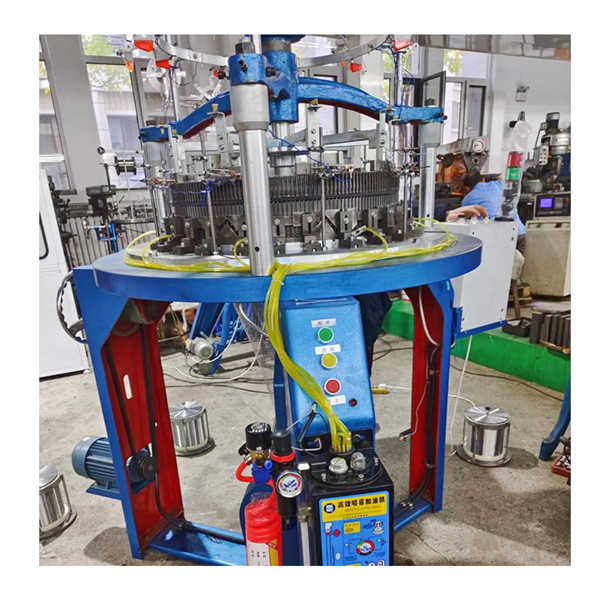

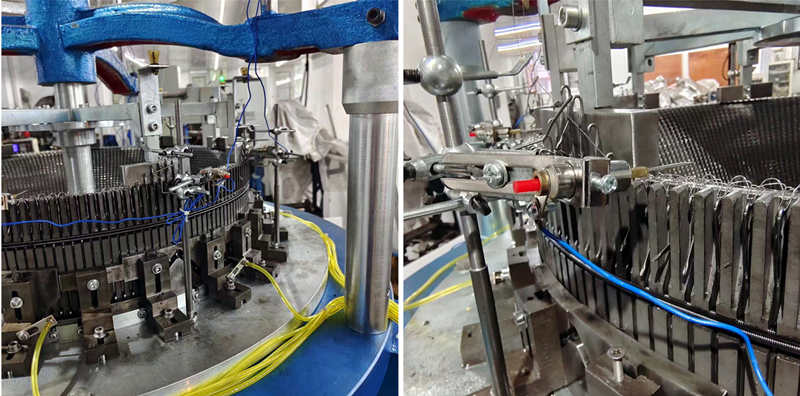

This wire mesh machine is mainly used to produce the mesh for the exhaust pipes.

1. Braiding machine level: E2-E8;
2. Rotation speed: 45-85 rpm;
3. The machine adopts 220V three-phase AC power supply;
4. The machine adopts a three-stage frequency converter to control the weaving main shaft, take-up main shaft, and silk shaft untwisting respectively. The output frequency of the inverter is 50Hz, and the three-stage linkage ratio is set according to the wire diameter, tensile strength, and elongation during the weaving process.
5. Overall dimensions and net weight of the machine:
<1> Overall dimensions of the machine: 850mmX550mmX1500mm (length x width x height);
<2> Net weight of the machine: 110KG;
6. The coiling and drafting motor is controlled by the frequency converter from 0 to 75 rpm.
7. Machine output: 15m-40m/hour;

Technical Parameters

No.	Bellow OD	Mesh Width	Mesh ID	No of Needles
1	Φ44.6mm	70mm	Φ44.6mm	26 Needles
2	Φ58.6mm	92mm	Φ58.6mm	32 Needles
3	Φ63.7mm	100mm	Φ63.7mm	30 Needles
4	Φ66.8mm	105mm	Φ66.8mm	38 Needles
5	Φ73.2mm	115mm	Φ73.2mm	40 Needles
6	Φ79.6mm	125mm	Φ79.6mm	28 Needles
7	Φ86mm	135mm	Φ86mm	32 Needles
