Description
YKCX-65D Hydraulic forming machine for EGR pipe
MAIN PARAMETER
- Diameter range: DN15-65mm
- Wall thickness: D£ 0.2- 0.4mm
- Type of the bellows: Annular bellows
- Speed: 6-8seconds/convolution
- Control: PLC control
- Length: DN32 and DN40, L≤ 4000mm
- The sizes bigger than DN50, L≤ 7000mm
- Expanding medium: Emulsified liquid
SPECIFICATION PARAMETER
Single layer forming parameter of YKCX-65D
| No | Size | Hose OD | Thickness | Pitch distance | Thickness of each convolution |
| 1 | Ф16.0 | 22 | 0.3 | 4.5 | 1.8 |
| 2 | Ф20.0 | 32 | 0.3 | 4.8 | 2 |
| 3 | Ф25.0 | 38 | 0.4 | 5 | 2 |
| 4 | Ф32.0 | 43 | 0.4 | 5.2 | 2.3 |
| 5 | Ф40.0 | 54 | 0.5 | 5.7 | 2.3 |
| 6 | Ф50.0 | 65 | 0.5 | 6.3 | 2.9 |
| 7 | Ф65.0 | 81 | 0.6 | 7 | 3.5 |
Double layer forming parameter of YKCX-65D
| Size | Outer tube OD | Inter tube OD | Thickness | Width | Formed OD | Pitch distance |
| DN16 | Ф16.5 | Ф15.8 | 0.15/0.15 | 51.34/49.14 | Ф23 | 4.2 |
| DN22 | Ф22.3 | Ф21.6 | 0.16/0.16 | 69.52/67.32 | Ф30 | 4.6 |
| DN25 | Ф25.3 | Ф24.5 | 0.20/0.20 | 78.81/76.30 | Ф33 | 5.2 |
| DN30 | Ф30.3 | Ф29.5 | 0.20/0.20 | 94.51/92.00 | Ф40 | 5.8 |
| DN48 | Ф48.3 | Ф47.3 | 0.30/0.30 | 150.72/147.58 | Ф48 | 6.4 |
| DN54 | Ф54.3 | Ф53.2 | 0.30/0.30 | 169.56/166.11 | Ф66 | 7.2 |

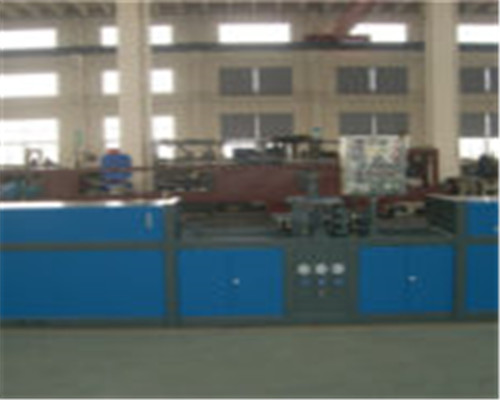

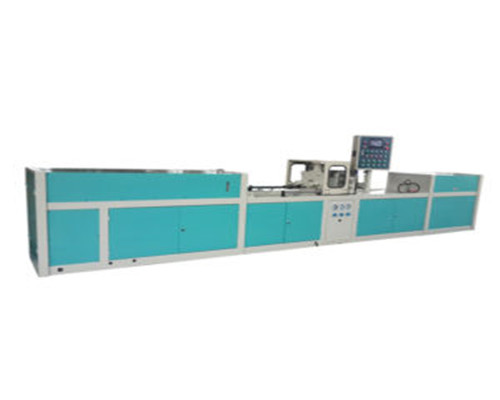

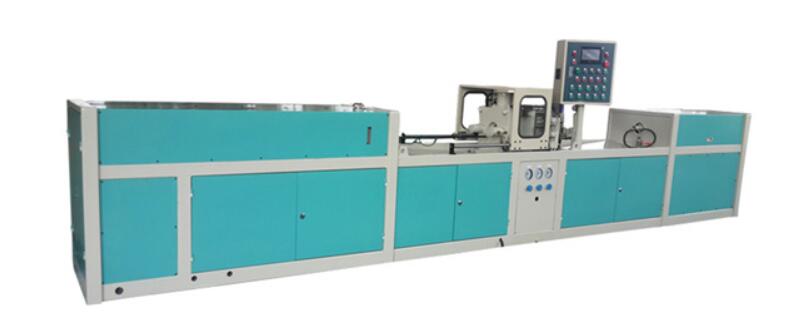

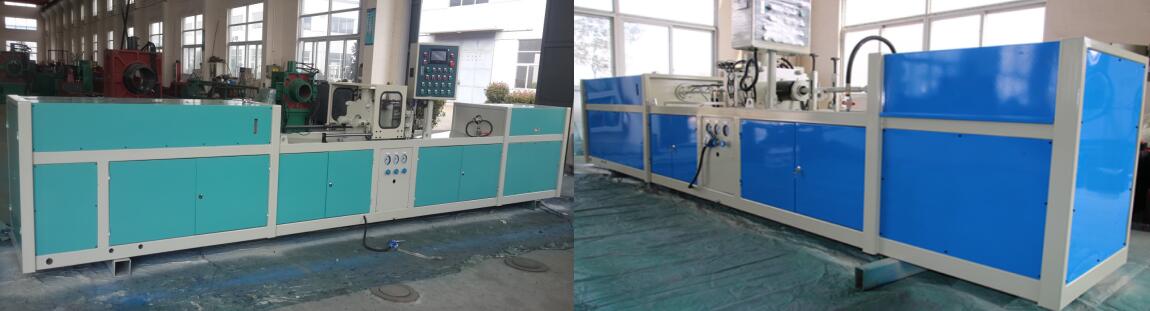

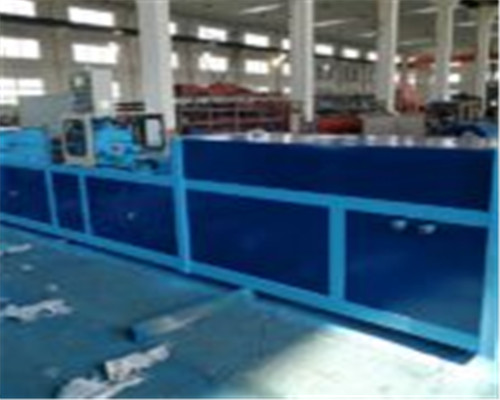

PICTURES OF THE MACHINE

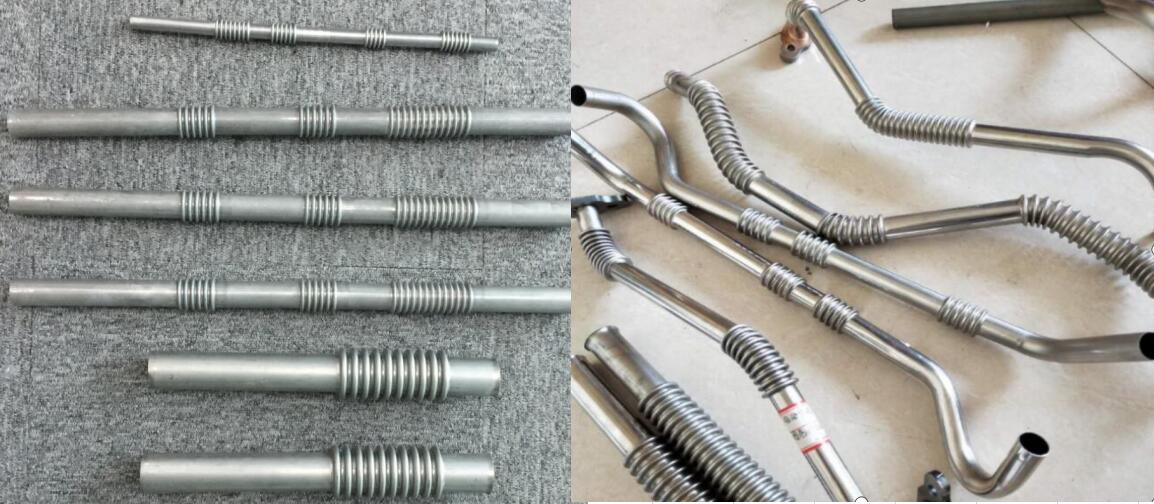

PRODUCTS FROM THE MACHINE

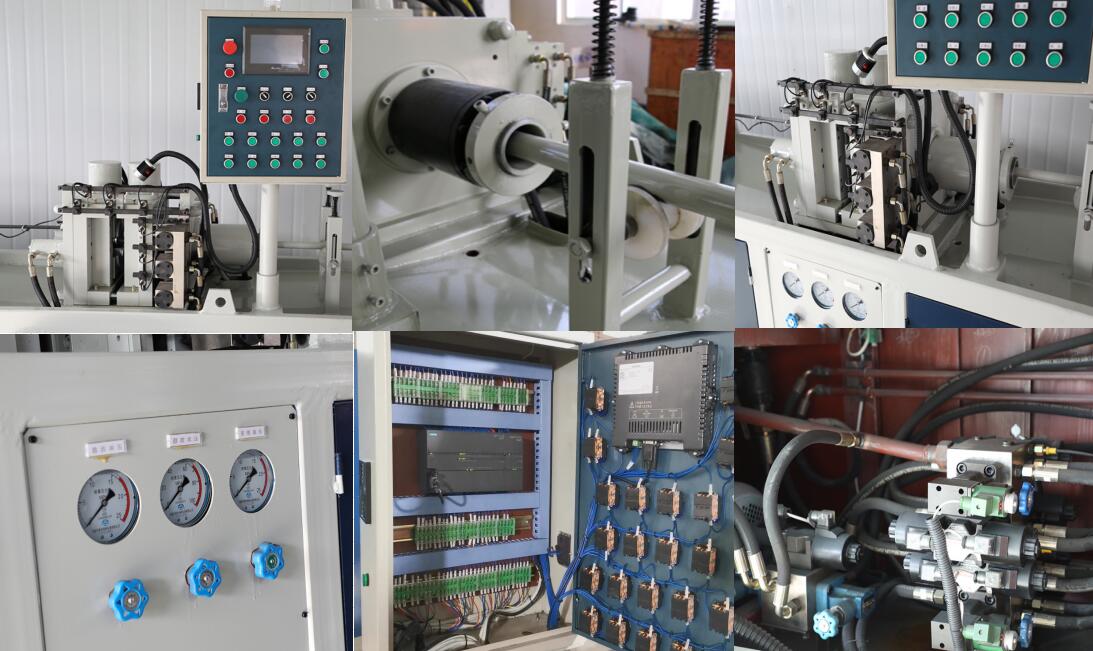

PICTURES OF THE MACHINE DETAILS
